Permanent Magnetic Lifter/magnetic lifter/magnet lifting
General Introduction:
Our permanent magnet lifter made by Ndfeb magnet has strong magnetic path. On and off of this magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerfull lifting effort, easy and safe to operate, long-period effort and power supply is no needed. They can be used to lift and transport the steel and iron for factories, docks, ware houses, transportations etc.
Features:
1. Small and most compact
2. No need of electricity and no dangerous from sudden cut off of elecctricity
3. No damage of contacting surface lifted objects.
4. The position of magnetism on/off switch is secured bu a botton
5. With a V shape slot through the center of hoding surface, both round and flat steel objects can be lifted
6. Safety factor of all types is 3.5 Minimum
7. Magetic lift has strong magnetic controlled by turning the manual nozzle. There are shackles on the top of magnetic component firmly.
Specification:
| Model |
Rated Lifting Strength
(kg)
|
Cylindrical lifting strength
(kg)
|
Max pull-off strength
(kg)
|
L
(mm)
|
B
(mm)
|
H
(mm)
|
R
(mm)
|
Operation Temperature
°c
|
Dead Weight
(kg)
|
| CSYQ-100C |
100 |
50 |
350 |
64 |
92 |
67 |
107 |
<80 |
3.0 |
| CSYQ-300C |
300 |
150 |
1050 |
92 |
162 |
91 |
207 |
<80 |
7.5 |
| CSYQ-600C |
600 |
300 |
2100 |
122 |
233 |
118 |
247 |
<80 |
23.0 |
| CSYQ-1000C |
1000 |
500 |
3500 |
179 |
268 |
164 |
275 |
<80 |
55.5 |
| CSYQ-2000C |
2000 |
1000 |
7000 |
234 |
378 |
212 |
370 |
<80 |
125.0 |
Application:
Our magnetic lifter mainly used for connecting component and other magnetic material. They are easy for operattion, safe in handling, lightly and ingeniously structured. Hence magnetic lifter is widely used as hoisting devices in factories, docks, ware houses, transportations industries. By using magnetic lifer, you can improve your working conditions and increase your working efficiency.

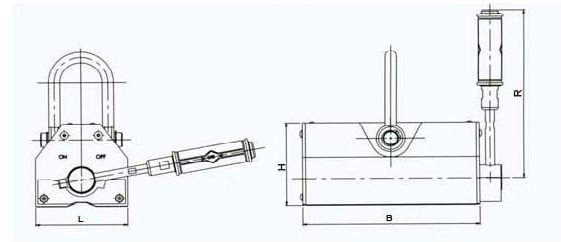

Magnetic Lifter Structure:
We have accumulated abundant experience and established stable and credible business relationships with customers worldwide. With rich experience in dealing with all types of large and small orders, we have developed extensive contacts with many local and international freight organizations. Consequently, we are able to ship our goods safely and reliably to almost anywhere in the world.
For more detail info, please feel free to visit our website or inquire us at any of your convenience.
